HOMES/ADEMCO

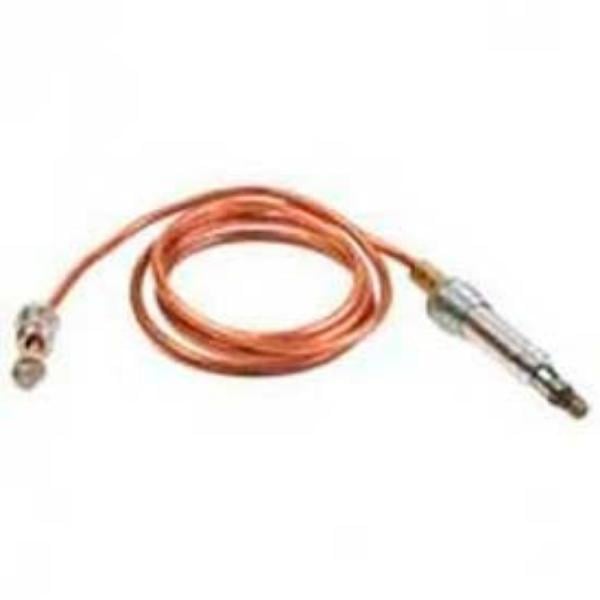

24" COPPER THERMOCOUPLE WITH UNIVERSAL ADAPTER -RESIDENTIAL
Aisle Number: 17
Bin Number: 14
The Q340 premium thermocouple from Resideo generates 30 mV to sense the pilot flame on gas-fired heating systems. The thermocouple includes a push-in clip, split nut, or adapter assembly (depending on model) for easy installation. It also has a male nut connector for Pilotstat safety control power units. Available in a variety of lead lengths.
Specifications:
| Application | Generates a thermoelectric current that senses a pilot flame on gas, Thermocouple for Standing Pilot Applications |
|---|---|
| Prop 65 Warning | WARNING/CA WARNING/CALIFORNIA: “Risk of cancer and reproductive harm from exposure to [Lead]. See www.P65Warnings.ca.gov |
| Compatible With | Gas-fired Systems |
| Universal | Yes |
| For Use With | Q314, Q324, Q327 |
| Includes | Push-in Clip, Split Nut, Adapter Assembly |
| Lead Wire Length | 24 in |
| Product Length | 24 in, 610 mm |
| Hot Junction Temperature Rating (Max) | 1400 °F, 760 °C |
| Open Circuit Output (Max) | 26 to 32 mV |
| Open Circuit Output (Min) | 18 mV |
| Operating Voltage | 30 mV |
This product must be installed by a qualified/licensed contractor and set up with properly calibrated test equipment. Failure to have the installation performed by a qualified professional could result in substantial property damage, and even severe personal injury or death, and Resideo will not be responsible for any damages or injuries resulting from not observing this warning.
Chat with us now or give us a call for shipping costs at (773)283-2550. You can also place the order and our sales team will get back to you with shipping estimates within 24 hours.
Contact BE Atlas for Updated Pricing: (773) 283-2550
UPCiteMDB Info (Beta: please contact us for the most up-to-date information):
Title: Honeywell Home Thermocouple Flame 24 in Cable 26 to 32mV Q340A1074 (4.6 Width)
Barcode: 085267067416
Size/Weight: 0 / 0.15lb
Description: Specifications Voltage: 30 mV Connection Type:Push-in Clip Connection Type: 11/32 32 Male Connector Nut Lead Length (in.): 24 in. Lead Length: (mm) 457 Open Circuit Output (mV): 26 mV to 32 mV Resistance: 0.02 ohm Temperature Ratings (F): Hot Junction 1400 F Temperature Ratings (F): Cold Junction 780 Includes: Adapter and Push In Clip Features Push-in clip split nut and adapter assembly for easy pilot burner installation. Spade or quick-connect terminals available for millivolt gas control connections.
