HOMES/ADEMCO

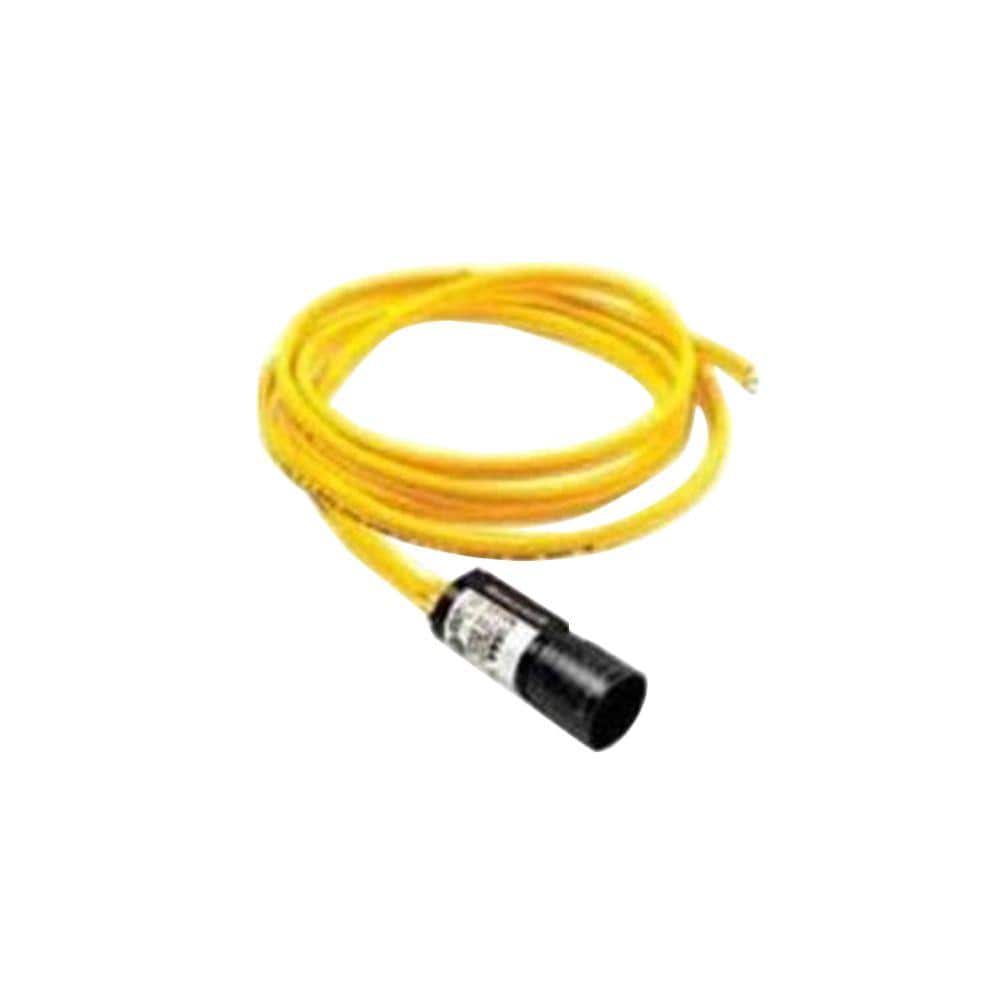

<S> <C> CAD-SULF FLAME DETECTOPHOTOCONDUCTIVE f/OIL BURNERS
Aisle Number: 18
Bin Number: FPB
Chat with us now or give us a call for shipping costs at (773)283-2550. You can also place the order and our sales team will get back to you with shipping estimates within 24 hours.
Contact BE Atlas for Updated Pricing: (773) 283-2550
UPCiteMDB Info (Beta: please contact us for the most up-to-date information):
Title: Honeywell Flame Detector
Barcode: 085267990141
Size/Weight: 100 / 0.30lb
Description: Cadmium sulfide flame detector for use with protect relay oil primary controls. Can be used with controls such as R4166 R4184 R7184 R8182 R8184 R8185 and R8404. Glass-to-metal hermetic seal in plug-in cell prevents deterioration by humidity soot or oil fumes. On flame failure the light sensitive cadmium sulfide cell in conjunction with flame sensing circuitry causes the Protectorelay control to shutdown the main oil burner. Brand Name: Honeywell Product Type: Flame Detector Application: For Sequencing Oil Burner Systems Connection Length: 1 in. Maximum Temperature: 140 ?F CSA Listed: Yes Mounting Type: Direct Mount UL Listed: Yes Packaging Type: Boxed Gas Type: Cadmium Sulfide Heigh: 1-7/8 in. Lead Length: 60 in. Widt: 1/2 in.
