B & K LLC-BRASS NIP/FITG {P}

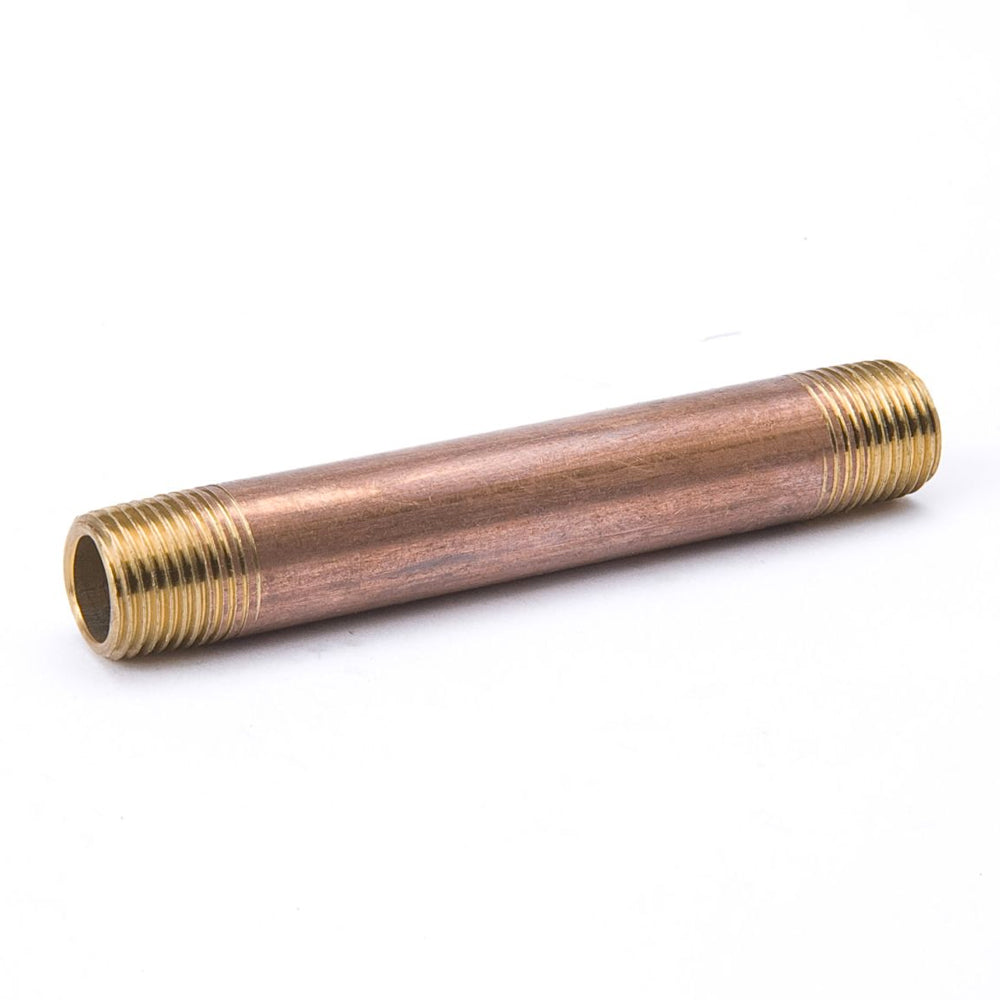

3/4-IN. X 2-1/2-IN. NO-LEAD RED BRASS NIPPLE
Aisle Number: 18
Bin Number: 13
Nipples offer you several diameters and smaller lengths for your piping repairs or extensions. General uses for this product are for safely transferring high heat fluids and extreme air pressure or to create your own DIY projects. This nipple is designed to connect to red brass fittings.
- Red brass construction supports applications in corrosive environments
- Lead-free construction supports applications for human consumption
- Designed to be used in conjunction with red brass fittings
- Nipple conforms to ASTM B.43 red brass pipe standards
- Threaded ends comply with ANSI/ASME B1.20.1 standards
SPECIFICATIONS:
| Inlet Diameter (in) | 3/4 |
|---|---|
| Inlet Connection | MIP |
| Outlet Diameter (in) | 3/4 |
| Outlet Connection | MIP |
| Length | 2-1/2-in |
| Product Length (in) | 2.50 |
| Product Height (in) | 1.05 |
| Product Width (in) | 1.05 |
| Product Weight (lbs) | 0.2100 |
| Working Pressure (PSI) | 454 |
| Maximum Pressure (PSI) | 601 |
| Minimum Temperature (ºF) | -20 |
| Working Temperature (ºF) | 77 |
| Maximum Temperature (ºF) | 650 |
| Unit of Measure | EA |
| Prop65 ID | Lead |
| Warranty Code | Limited 1-Year Warrenty |
| Brand | Southland |
| Product Type | Nipples |
| Product Material | Brass |
| Standards | AB 1953,NSF/ANSI/CAN 372-2022 |
