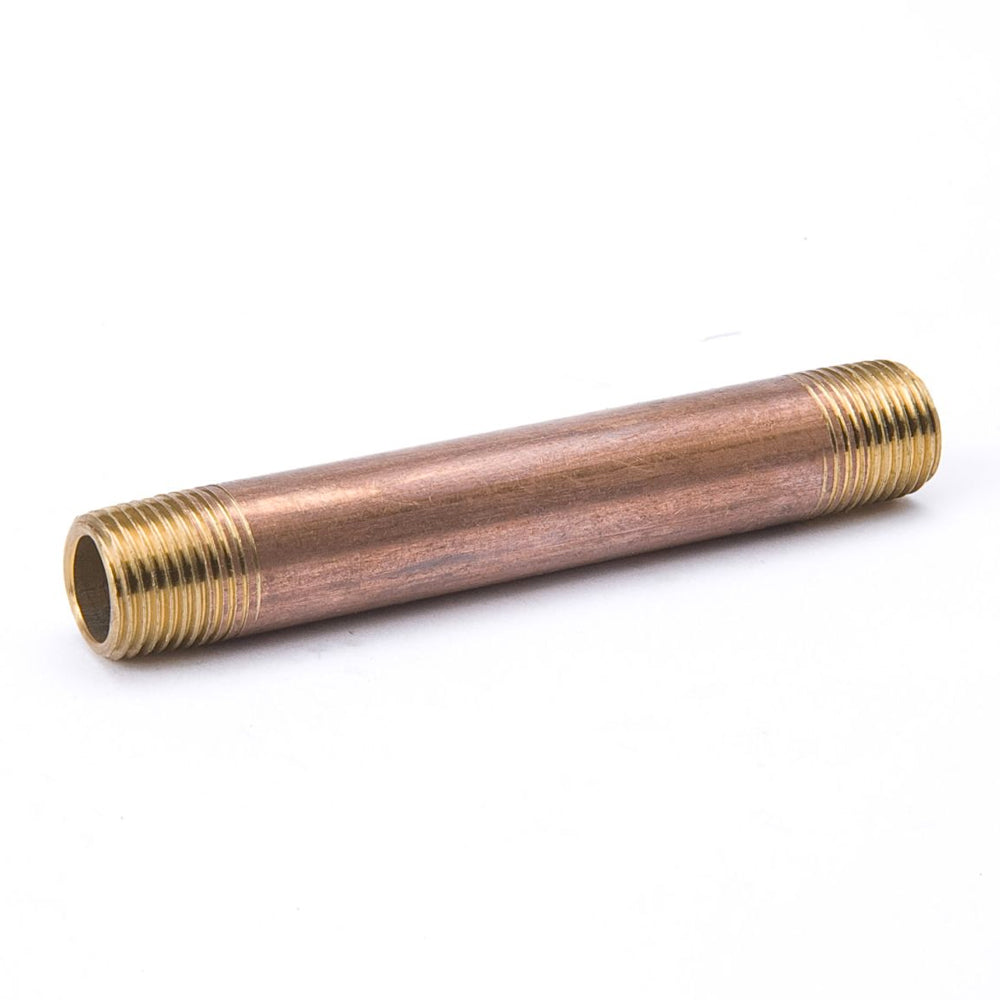

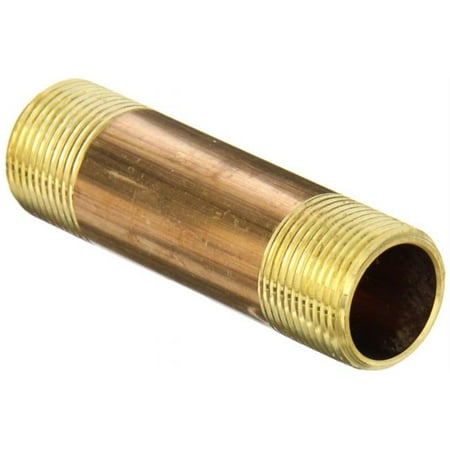

1/2-IN. X 2-1/2-IN.           NO-LEAD RED BRASS NIPPLE

B & K LLC-BRASS NIP/FITG {P}

1/2-IN. X 2-1/2-IN. NO-LEAD RED BRASS NIPPLE

Login to see the price
SKU: 1450463025

Aisle Number: 18

Bin Number: 14

Nipples offer you several diameters and smaller lengths for your piping repairs or extensions. General uses for this product are for safely transferring high heat fluids and extreme air pressure or to create your own DIY projects. This nipple is designed to connect to red brass fittings.

  • Red brass construction supports applications in corrosive environments
  • Lead-free construction supports applications for human consumption
  • Designed to be used in conjunction with red brass fittings
  • Nipple conforms to ASTM B.43 red brass pipe standards
  • Threaded ends comply with ANSI/ASME B1.20.1 standards
SPECIFICATIONS:
Inlet Diameter (in) 1/2
Inlet Connection MIP
Outlet Diameter (in) 1/2
Outlet Connection MIP
Length 2-1/2-in
Product Length (in) 2.50
Product Height (in) 0.84
Product Width (in) 0.84
Product Weight (lbs) 0.1600
Working Pressure (PSI) 879
Maximum Pressure (PSI) 879
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 650
Unit of Measure EA
Prop65 ID Lead
Warranty Code Limited 1-Year Warrenty
Brand Southland
Product Type Nipples
Product Material Brass
Standards AB 1953,NSF/ANSI/CAN 372-2022
